Gigabit PoE Injector 4 Port 1000Mbps PoE Patch Panel 802.3af For Surveillance IP Camera WiFi Access Point(AP), ModeB operation

FOB Reference Price:Get Latest Price
$6.20 - $7.20 / Pieces | 50 Piece/Pieces (Min. Order)
Report Suspicious Activity
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Model Number:
Product Name:
Gigabit PoE Injector
Passive PoE injector
Security Monitoring
12 Months
Data Rate:
Data Cable:
TIA/EIA 568 Cat.5
Packaging & Delivery
Packaging Details
115pieces in a carton
Carton size: 32*27*22CM
10kgs each carton
Lead Time :
1-5 Days after payment

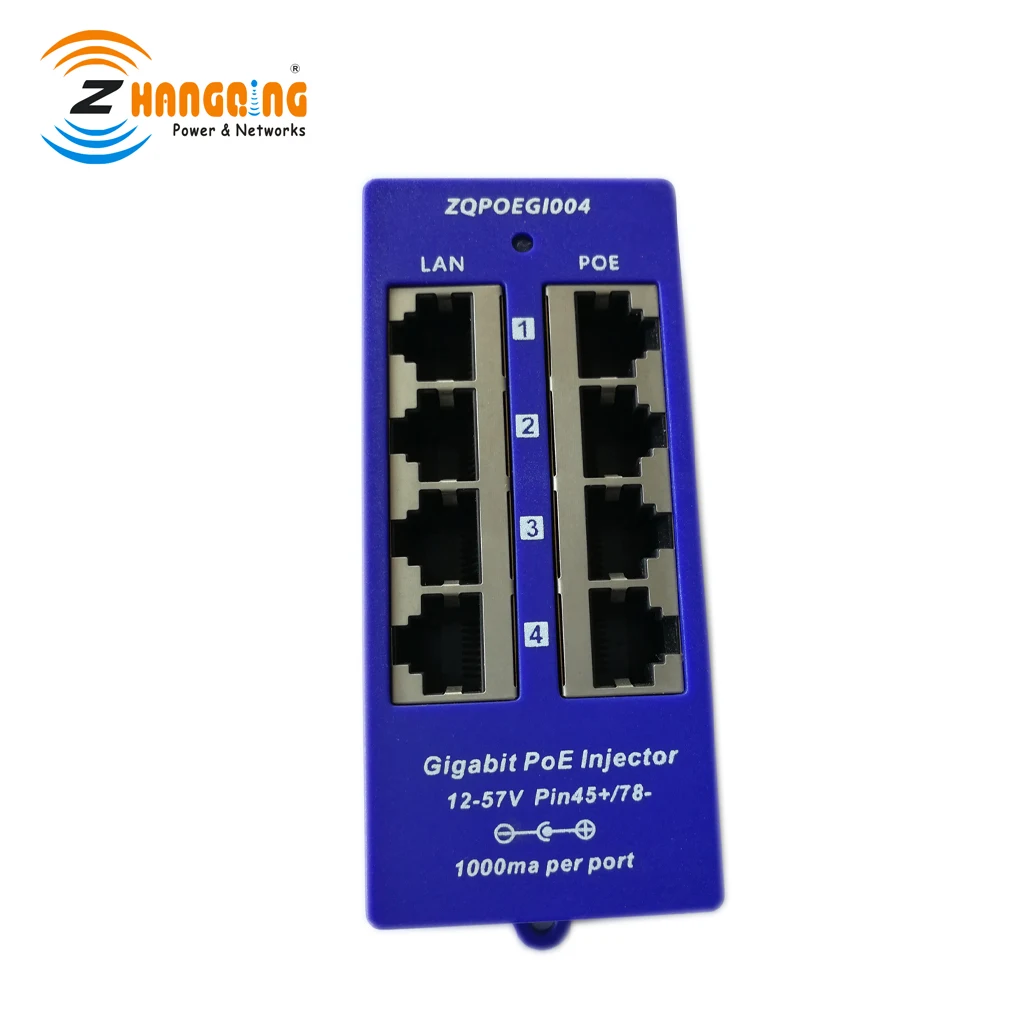

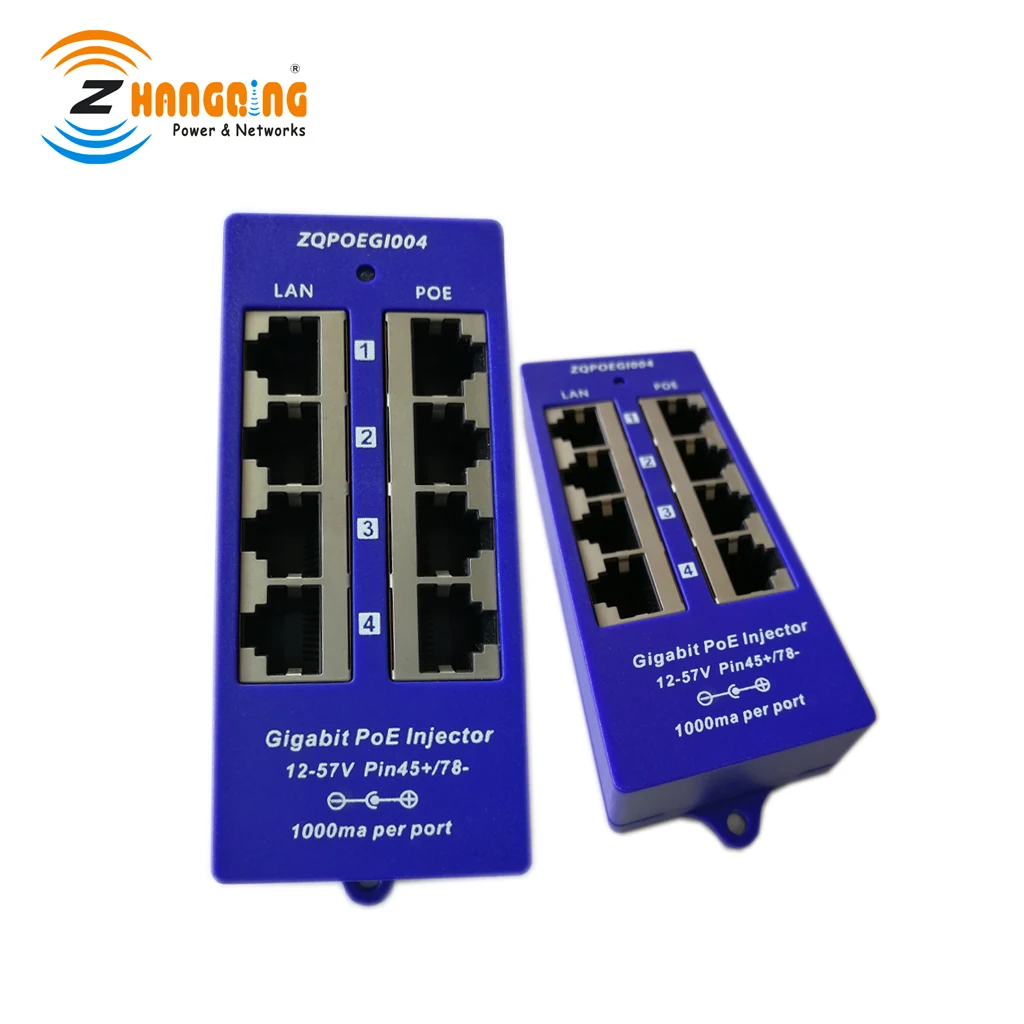

Gigabit PoE Injector 4 Port 1000Mbps PoE Patch Panel 802.3af

For Surveillance IP Camera WiFi Access Point(AP), ModeB operation

Product Description


• 4 Port Gigabit Ethernet Injector
   – 4 Shielded RJ-45 LAN
   – 4 Shielded RJ-45 LAN+POE
   – 10/100/1000 data rates
• Injector: 115mm x 45mm x 25mm
   including 10mm tabs
• Wall mount - stackable
• 1000 ma automatic resettable fuse on each port
• Same voltage to all ports power is shared as needed by the devices
• Use with any Ethernet switch
   – PoE or non-PoE switches
• Standard power connector
   - 2.1mm x 5.5mm
• Mode B operation
    - pins 7,8 (-) - pins 4,5 (+)
• Select the power supply you need  30, 60 or 120 watts
• Power is always on
   - no autonegotiation
Product Line

1 Port Gigabit PoE Injector

Mode B

1 Port Gigabit PoE Injector

Mode A+B

4 Port Gigabit PoE Injector

 6 Port Gigabit PoE Injector

8 Port Gigabit PoE Injector

Mode A


8 Port Gigabit PoE Injector

Mode B

12 Port Gigabit PoE Injector  16 Port gigabit PoE Injector
4 Port 802.3af/at PoE Injector8 Port 802.3af/at PoE Injector



1) What is "PoE".

PoE is "Power over Ethernet." A device like this one takes DC power and injects on one or both pairs of wire in the Ethernet cable. It's used to power IP cameras, VOIP phones, WiFi Access Points and other network devices


2) How long can the Ethernet cables run from the injector for a PoE phone, for example, to function reliably?

The cable can run for 328 feet or 100 meters.


3) What's the difference between active and passive PoE?

Active means the Power Supplying Equipment (PSE) sends a short low voltage signal to your Power Device (PD) as soon as it is connected to determine how much power it needs, then this PSE sends only that power. The most common case for this is when you have a PoE port someone could plug a laptop into by accident. The laptop isn't PoE and could be damaged by it, so, if you have an active PSE, it won't send any power to the laptop accidentally connected to it. Passive sends PoE power all the time, which works great for most PoE specific applications like cameras, WiFi access points, or a port you know only PoE devices are attached to. Both work great for the right application.


4) What does it mean when a PoE device is "passive"?

Passive means that the power is on all the time. An 802.3af switch keeps the power off until a compatible device is attached. A passive PoE injector or switch provides the voltage (usually 48 volts) all the time, so you should only plug in PoE capable devices.


5) What is the difference between Mode A and Mode B?

Mode A and Mode B are two different PoE pinouts (the wire pairs used to transmit power). Mode matters most if you're powering a 24 volt passive PoE device like those from Mikrotik or Ubiquiti. These devices always need Mode B. If you're powering a device that has a spec of "802.3af" (48 volts), then either mode A or B should work.
