Multi Port PoE Injector with 8 Ports for Power and Data To 8 Devices,
for Ubiquiti camera, Add Power over Ethernet To Any Switch

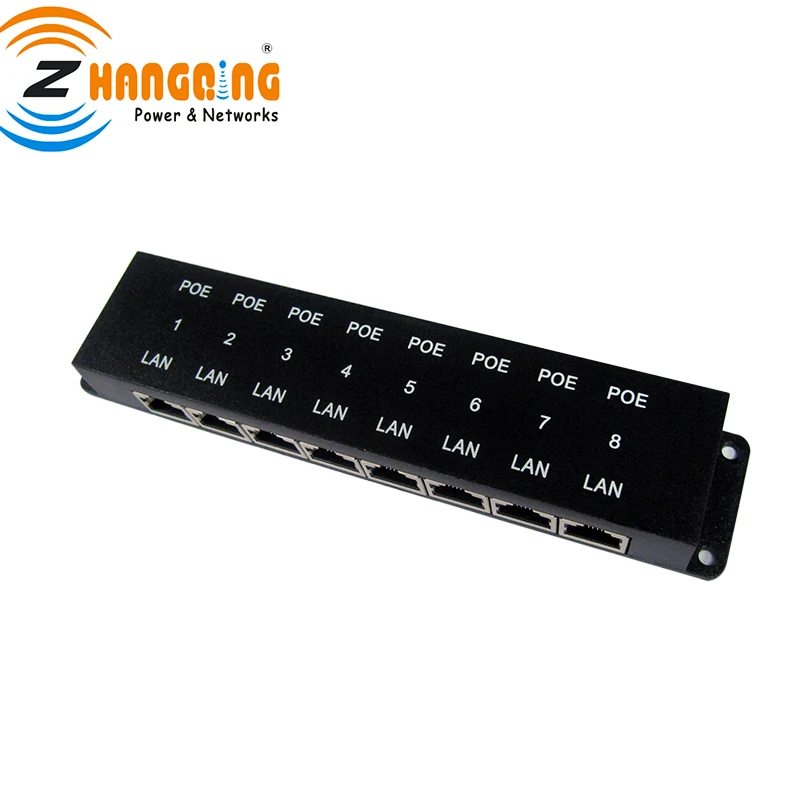

Panel 8 integrating passive POE injector suitable for powering up to eight devices.

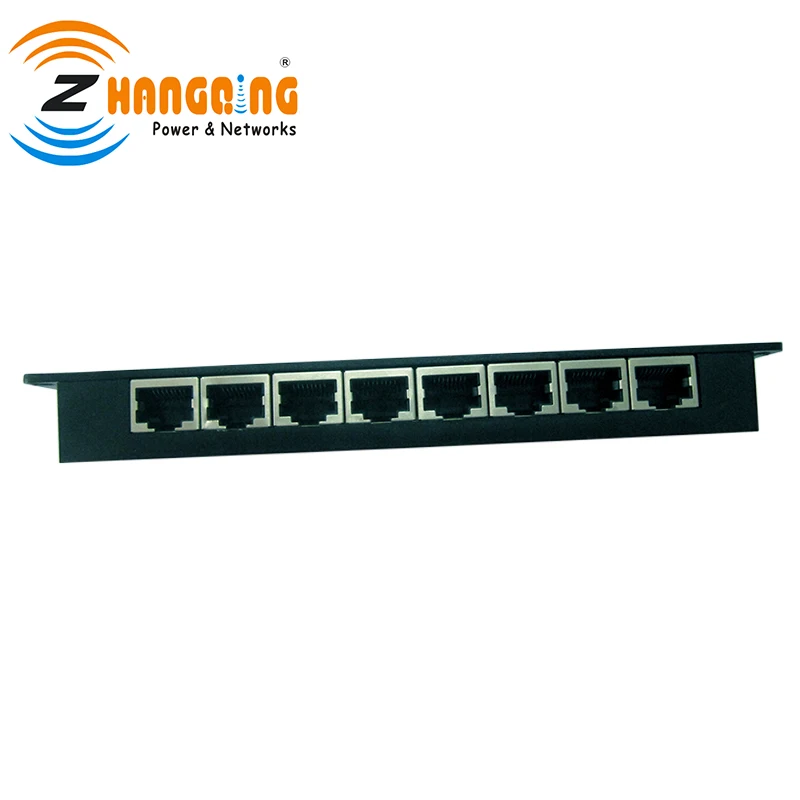

The RJ45 connectors on one side are connected Ethernet ports with no power (switch) on the opposite side of the device used to connect power for Ethernet cable.Are used to power the two unused pairs of the Ethernet cable.
Power couples: 4.5 (positive pole) / 7.8 (negative pole)
1:What is the max distance this will inject power?
A:100 meters or 328 ft.

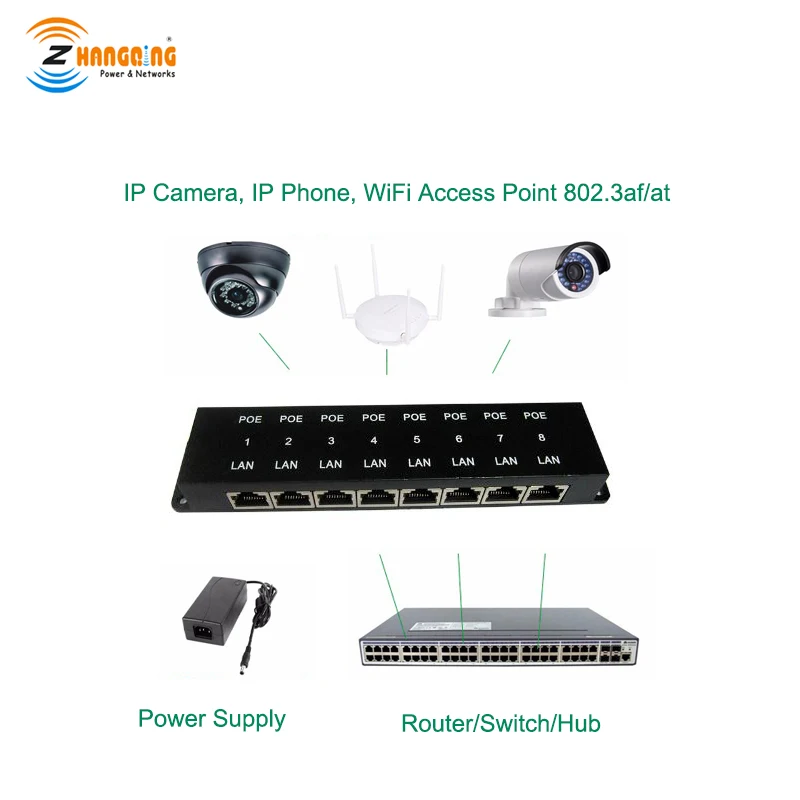

2:How to connect to NVR? do you connect the ethernet cable from the IP camera to the PoE side, then connect the LAN side to the NVR?
A:Before starting, please ensure that your IP camera and NVR are IEEE 802.3af compliant. The set up should then look like this:
1. Starting from your router, connect data out to the NVR uplink.
2. Send data via Cat cable to each of the LAN ports on the POE-8 injector.
3. Use the 48 volt 60 watt power supply to supply power to the injector.
4. Run Cat cable from the corresponding POE ports on the injector to each IP camera
