802.3af 48v 60w Passive Power Over Ethernet poe injector 8 port

FOB Reference Price:Get Latest Price
$15.00 - $20.00 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ZQ/OEM
Model Number:
POE-8-48v60w
Product name:
802.3af 48v 60w Passive Power Over Ethernet poe injector 8 port
Certification:
CE
Application:
IP CAMERAS, VOIP, WiFi AP, LED ligts
DC In:
12v ~57v
Power:
Pin 4/5 V+; Pin 7/8 V-
Power Supply:
48v 1.25a 60w
Supply Ability
Supply Ability:
30000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1 set in a white box
Usually in stock
Port
SHENZHEN, HONGKONG
Product Description

802.3af 48v 60w Passive Power Over Ethernet poe injector 8 port

This midspan injector allows you to remotely power up to 8 devices up to 100 meters via a single ethernet cable. Use with any 24 volt power supply to power IP security cameras, phones, wireless access points and other devices. "


Use with any ethernet switch

Flexible power(DC 12V TO 56V)

10/100Mbps fast ethernet

Ideal for IP Cameras,VOIP,WiFi

8 Port Injector(8 Lan&8 Lan+PoE port)

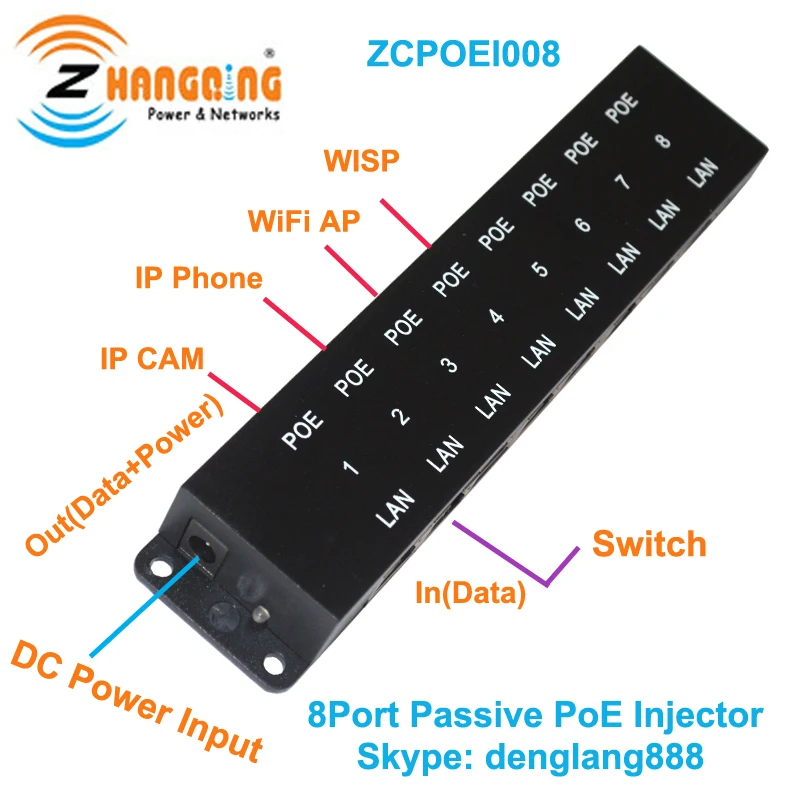

OVERVIEW

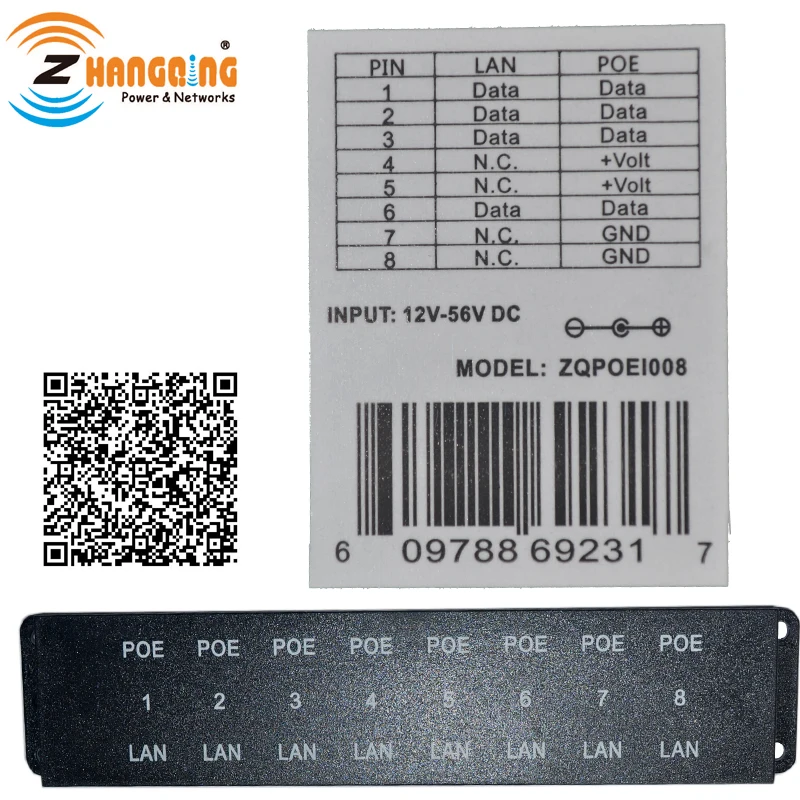

The 8port passive Poe Injector is used 10/100M Ethernet, The LAN RJ45 sockets is form "Switch/PC/HUB" 1/2&3/6 are transmitting data. The POE RJ45 (power + data) socket is to deliver data and power. Pin 1/2 & 3/6 transmitting data, Pin 4/5(+) & 7/8(-) for power. Passive PoE is composed of 8 set of Rj45 sockets and one 60V DC power jack. Input power requests 60W or more Ac to Dc Power converter. The input dc hole diameter is 2.1mm and the other end OD id is 5.5mm

The sum total output power must be lower than the Max input power of AC-DC power converter. If not, it is necessary to consider taking higher AC-DC power converter. There commended formula for AC-DC power converter is: 10W per RJ45 set (1 set = 2 x Rj45 sockets). For example, 8 x 10W = 80W for 8 port Passive PoE panel.

SPECIFICATION

Input : 12-56V DC 2.1MM
Output: 12-56V PER PORT(30W Max)
Data: 1/2&3/6
Power: 4/5 V+ & 7/8 VData In :Connects PC/HUB/Switch
Weight : 140g
Dimensions: 175mm×37mm×20mm
Ethernet Cable : TIA/EIA 568 Cat. 5
Data rate : 10/100Mbps
Connector: RJ-45
Operating Temperature : 0°C ~ 40°C
Storage Temperature : -40°C~+70°C
Operating Humidity : 10%~80%RH
Storage Humidity :5%~90%RH
Certification: CE

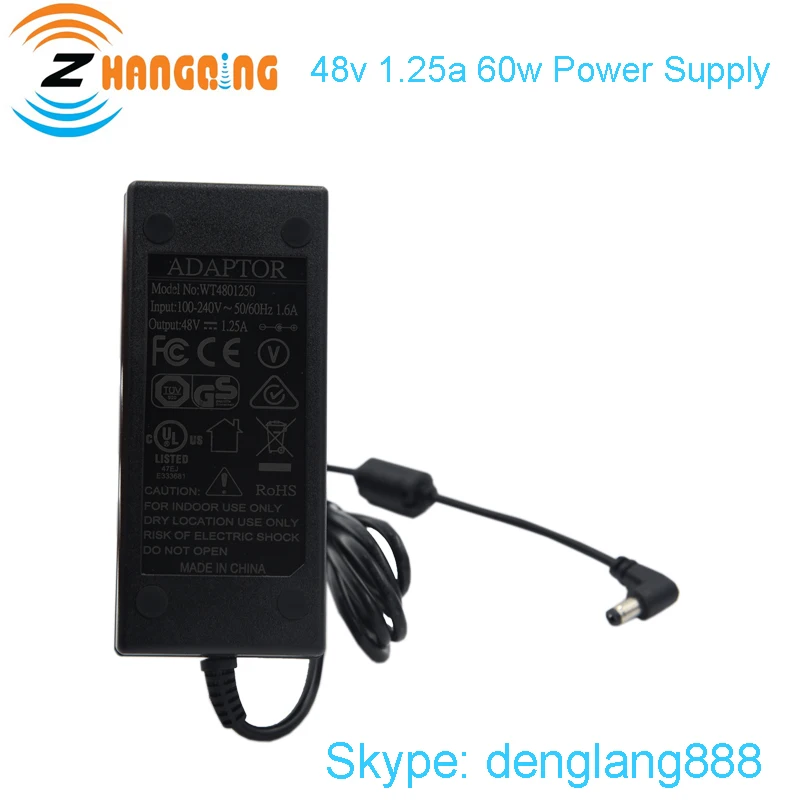

Power Supply: 48v 1.25a 60w

HOW TO ORDER

POE-8-48v60w   48v 1.25a 60w power supply with 8 PORT POE Panel 4/5+,7/8-

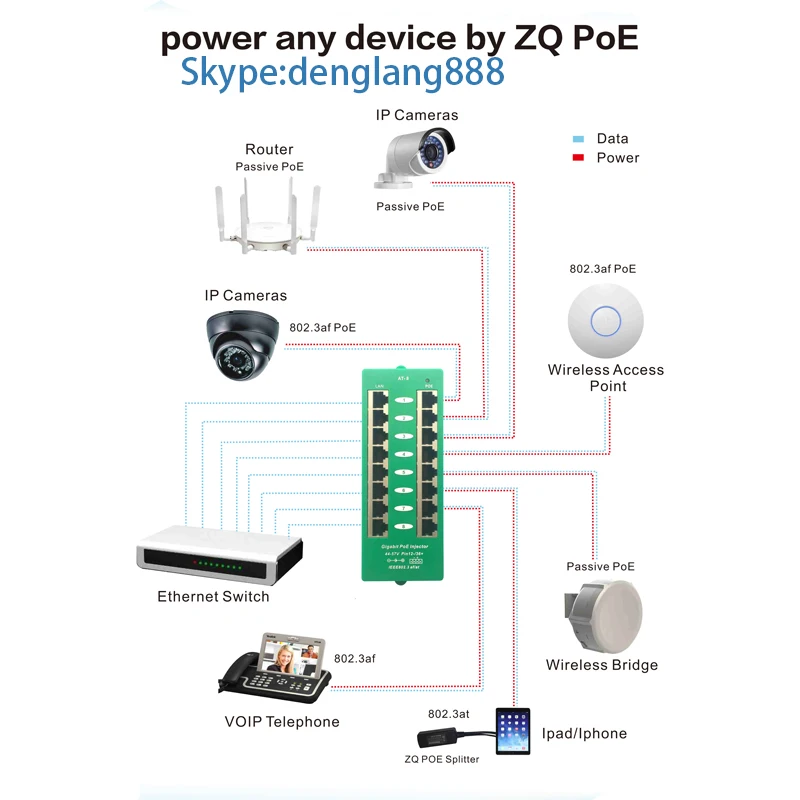

APPLICATION

IP Phone such as Cisco
Wireless Access Point (WiFi AP), such as MikroTik, Ubiquiti, OpenMesh etc
WiMAX Basestation
IP Survellance Camera
Door Security
POS
Netbook/mini Notebook

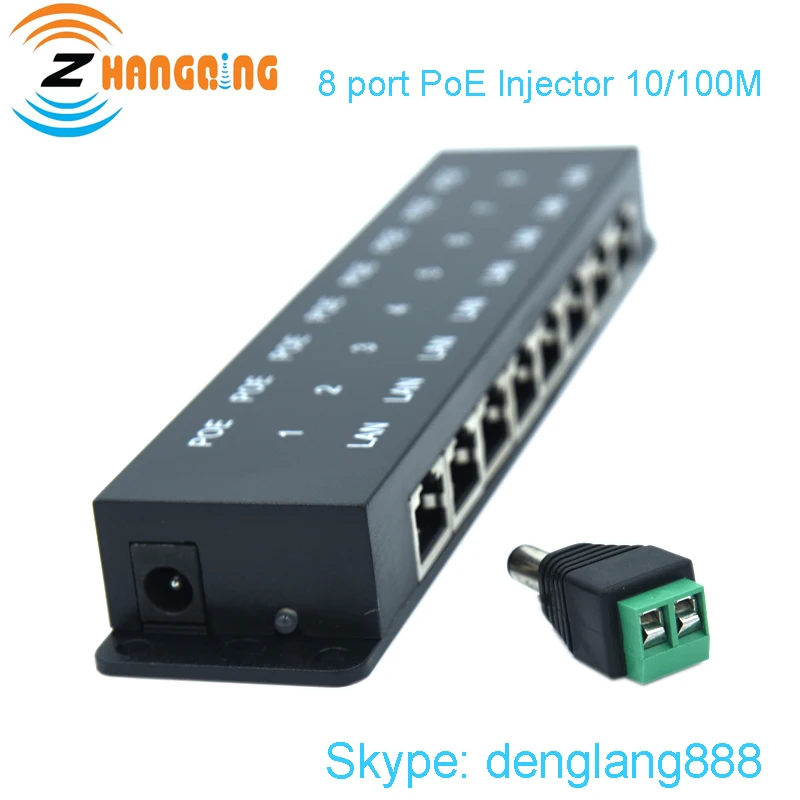

Detailed Images

POE Detector

This device reports via LED lights, the type of PoE that is on the Ethenet cable. With this keychain device, you can quickly find out what PoE method is available, the approximate voltage, and pinout and polarity.

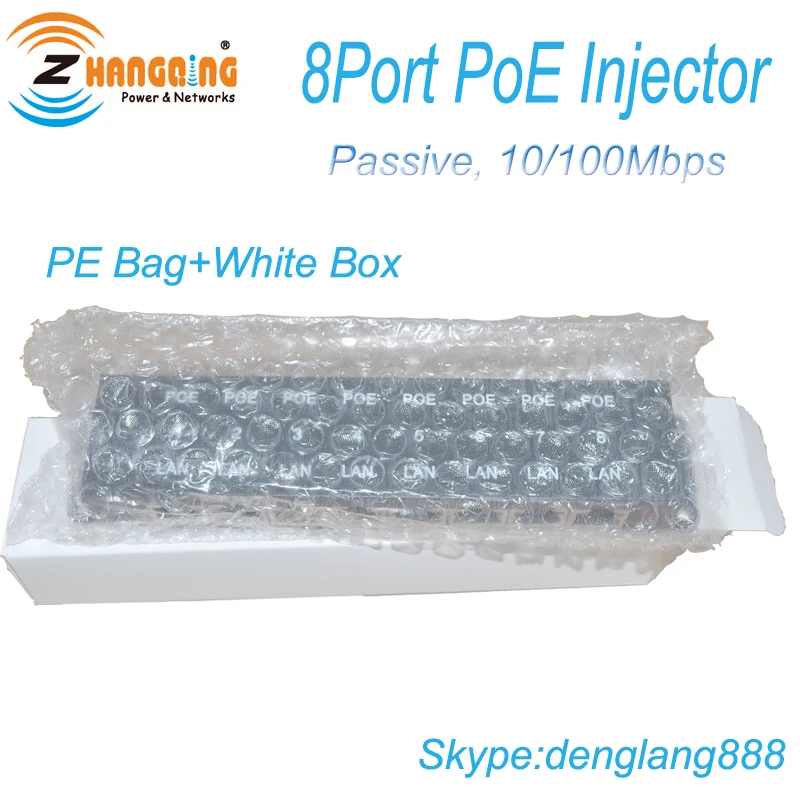

Packing & Delivery

1 set in a white box

Usually in stock
