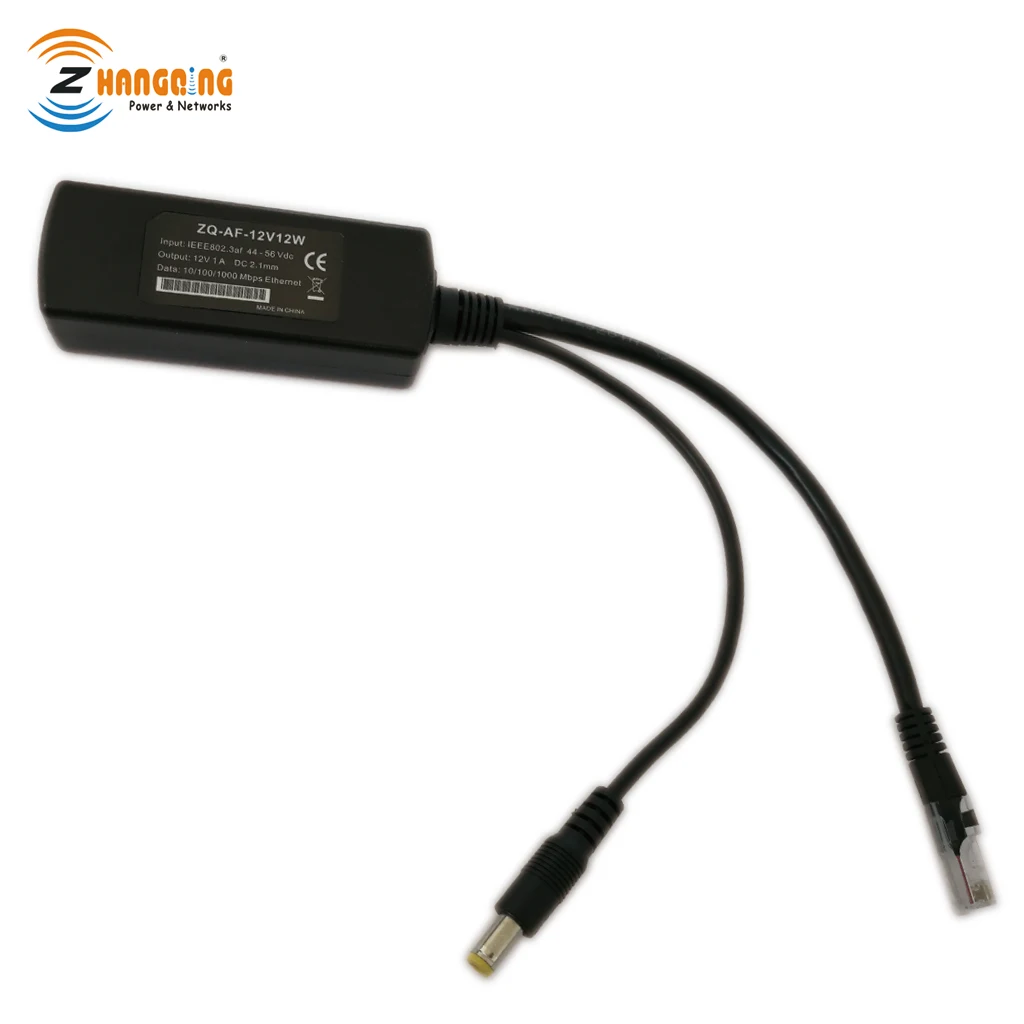

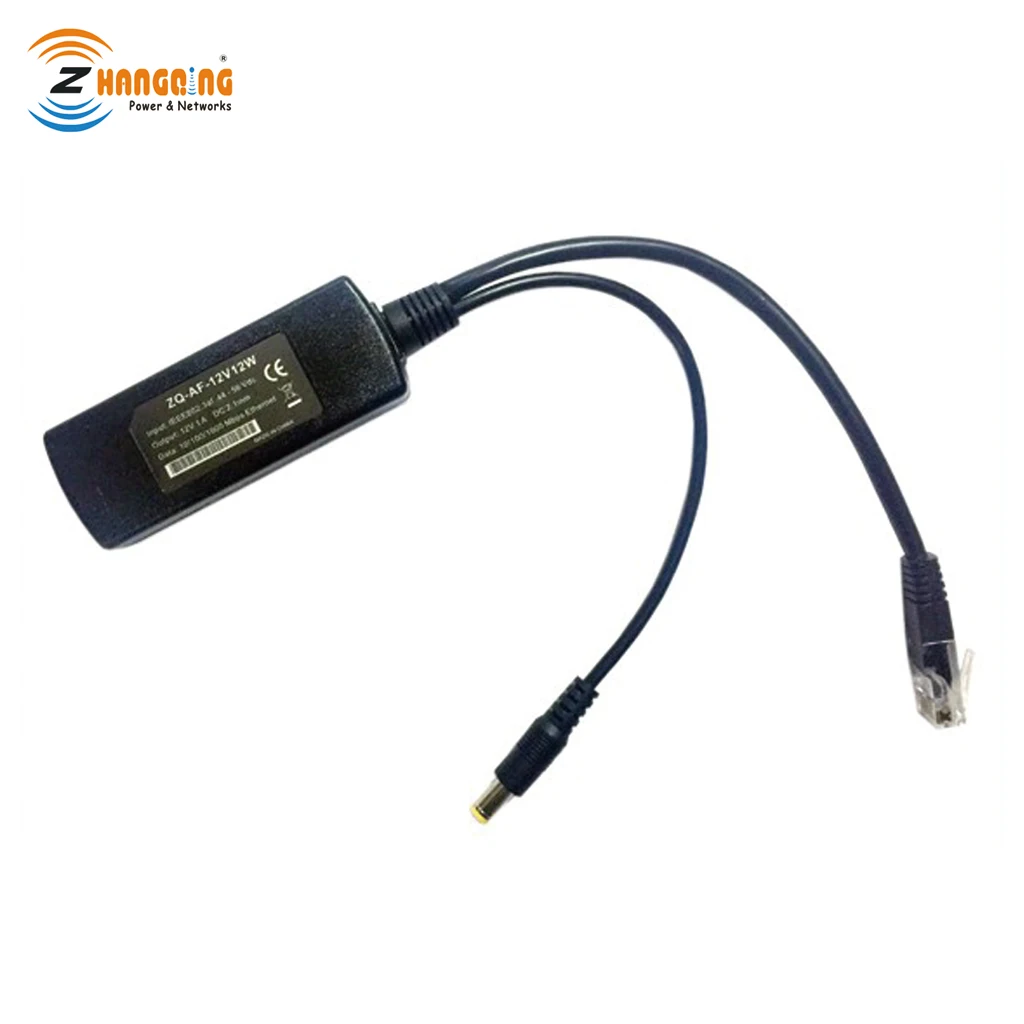

802.3af Gigabit Poe Splitters with 12 V output. Power Over Ethernet for Non-poe Devices like IP Cameras to 328Ft for PoE Switch

FOB Reference Price:Get Latest Price
$6.55 - $9.00 / Pieces | 20 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ZQ
Model Number:
ZQ-AT-12V12W
Color:
Black
Type:
12v12w POE Splitter
Certification:
CE/ROHS/ISO9001
POE Standar:
IEEE 802.3af/at
Data Rate:
10/100/1000Mbps
Application:
IP Camera/ VOIP/Wireless AP
Warranty:
12 Months
Packaging & Delivery
Packaging Details
250 Pairs in a carton
carton size:46*42*26cm
16kg each carton
Port
SZ/HK
Lead Time :
1-2 Day
Product Description



Remote Power for 12 volt 12 watt non-PoE devices
Extend power to 328 ft
• 802.3af to 12v splitter with 2.1mm x 5.5mm dc plug
• 802.3af compatible for PoE switches

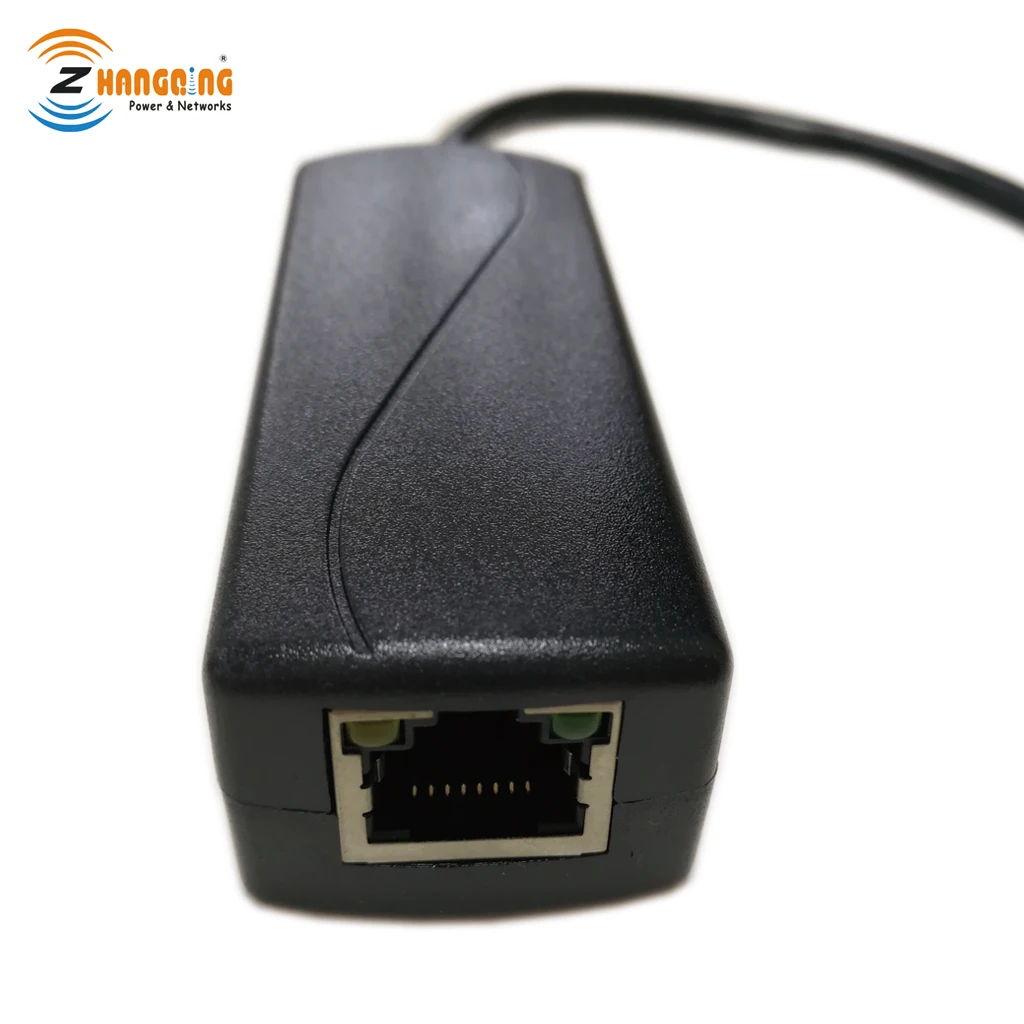

• power and data input via Female RJ45
• Male data only output RJ45
• 10/100/1000 gigabit operation.
  To be used with a PoE switch either 802.3af or 802.3at or passive injector
  Use these Splitters to power any 12 volt non-PoE device remotely, up to 328ft from the power source.
• These devices share power and data in the ethernet cable. The splitter at the camera lowers the voltage to 12 volts to operate the device.

Typical Cameras
• Foscam W outdoor series  Tenvis, Wansview, Maygion, EasyN, Apexis, EasySF,
• Routers, 12 volt tablet computers
• Non-PoE Access points, door locks and other devices

This device provides a low cost solution for delivering power to a 12 volt camera or routers over 328ft of network cable. This device allows power
to be carried on 10/100/1000 networks with either 802.3af or passive injectors and switches with a CAT5e, CAT6 or CAT7 Ethernet network cable.

Intended for use with Cisco or similar PoE switches – this active PoE solution negotiates with the switch to activate power and provide it to the
client device.  It is a compact and cost effective power solution. The switch supplies 48 or 56  volts DC at the source location.  The higher DC
voltage means the current is reduced by a factor of 4, and then carried with less loss over the 10BASE-T or 100BASE-T network cable.  The splitter
extracts the DC voltage from the network cable and reduces the voltage to 12v, and increases the available current by the same factor to power the
camera on the 2.1 mm x 5.5 mm splitter DC plug.    Unlike simple injector / splitter sets, this combination of a 48v source and 12v converter allows
you to extend the distance with this product for this application up to 328ft or 100 meters.

We also offer kits with up to 16 injectors and splitters  – so one power supply can feed 4, 8, 12 or 16 cameras.  These kits include the Multi Port
Passive POE injector and a power supply of either 30 watts, 60 watts or 120 watts.

Step a) connect 2.1mm DC cord to your camera,
Step b) connect RJ45 male to your camera
Step c) use a factory Ethernet cable to connect the RJ45 female to your PoE switch up to 100 mtr distance
